VACUUM WORK STAND PVS

Mechanical handling without re-clamping the workpiece can be rotated continuously, clamped in any position and swivelled by 90° into a vertical position.

  • Foot pedal for clamping and releasing the workpiece
  • Pneumatic or electrical vacuum generation, with energy-saving regulation (optional)
  • Sensing valve activates vacuum after the workpiece is in position, unused suction plates remain closed
  • Voltage AC 230 V with electrical vacuum generation
  • Dimensions of work stand:Length: 300 mm, Width: 300 mm, Height: 750 mm to 1,100 mm (infinitely adjustable)

Work Stands

Vacuum work stand with one suction plate and ejector SEG

Work Stands

Vacuum work stand with two suction plates and ejector SEG

Work Stands

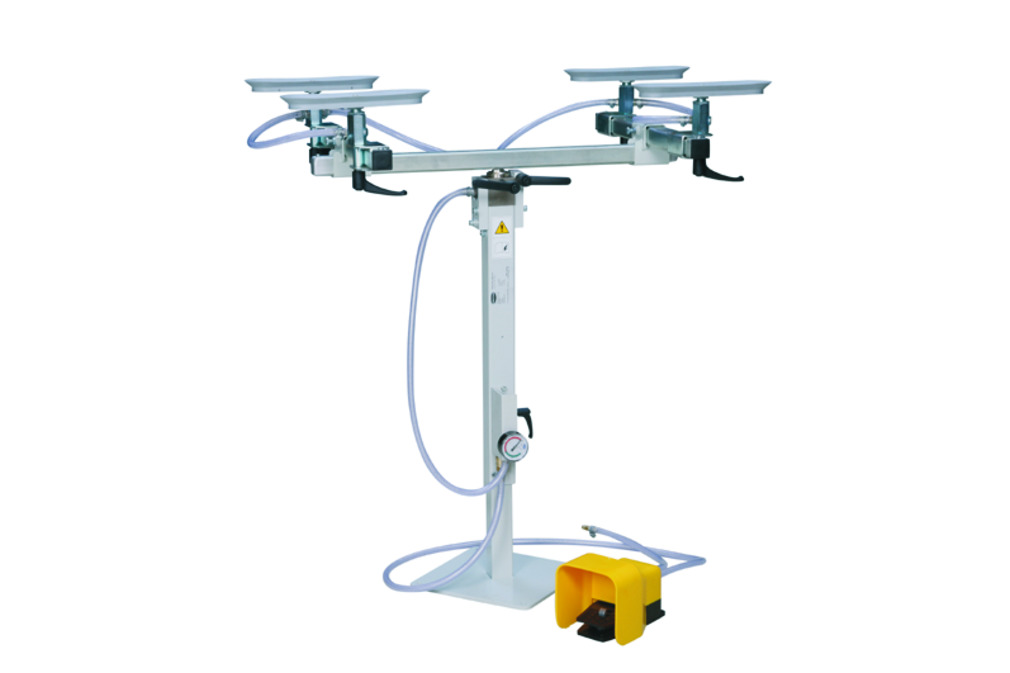

Vacuum work stand with four suction plates and ejector SEG

Work Stands

Vacuum work stand with one suction plate and vacuum pump EVE

Type Suction Plates Suction Plate Type (mm) Vacuum Generation Operating Pressure (bar) Max Lift Capacity (kg) Weight (kg) Part No.
PVS-1-SPL-250 VE SEG-4 1 SPL-250 Ejector SEG 5 90 34 13.01.01.10100
PVS-2-SPL-300x100-VE SEG-4 2 SPL 300x100 Ejector SEG 5 90 38 13.01.01.10117
PVS-4-SPL-300x100-VE SEG-4 4 SPL 300x100 Ejector 5 100 42 13.01.01.10118
PVS-1-SPL-250-VER EVE-4 1 SPL-250 Pump EVE - 90 42 13.01.01.10230
