VacuMaster Coil

Application

  • For thin and ultra-thin sheet metal, steel and stainless steel, metal foils, tinplate and aluminium
  • Maximum strip thickness of 3.0 mm (aluminium) or 1.5 mm (steel)
  • Continuous swivelling up to 90°

Design and Function

  • Vacuum lifting device with vacuum clamps (suction rings) that can be switched on/off separately
  • Highly reliable manual slide valve for activating vacuum
  • Electric vacuum pump for short evacuation times
  • Precise electric drive for continuous swivelling of the load
  • Audible warning device and vacuum reservoir for redundant safety in loss of vacuum and power failure respectively
  • Transparent suction plate for easily positioning

Your Benefits

  • Different sized coils can be handled with one device
  • Exact positioning and safe gripping of coils
  • Damage-free gripping without mechanical clamping
  • Loads can be swivelled effortlessly and set down flush with the floor

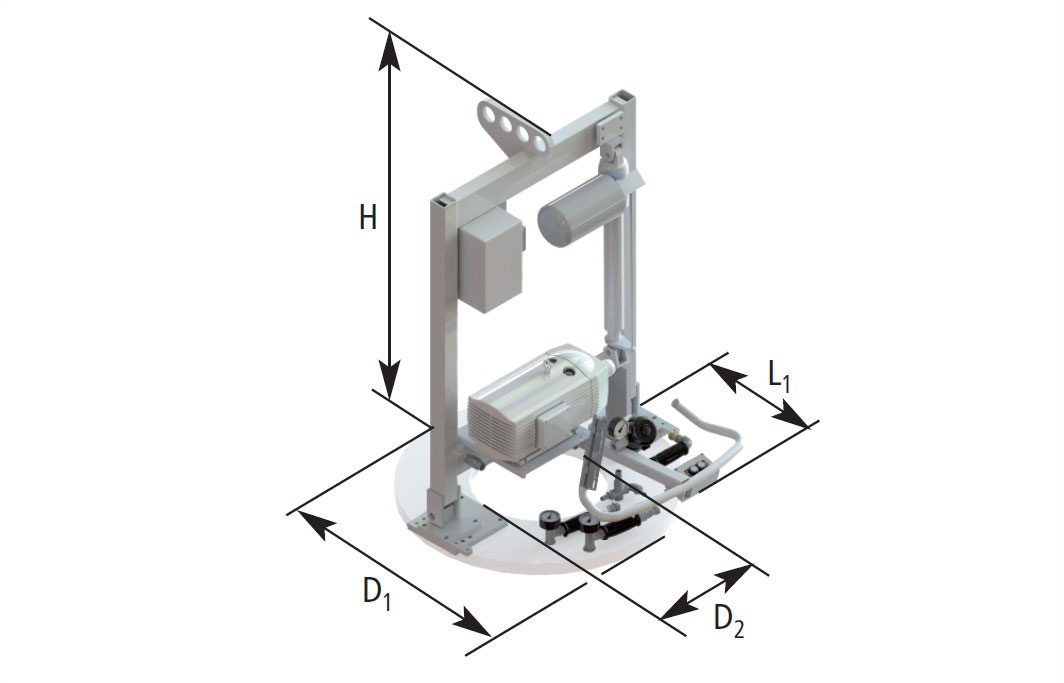

Type Max. lift capacity [kg] Min. workpiece Ø [mm] Max. workpiece Ø [mm] Number of suction clamps
Coil 500 90° 500 600 1,200 3
Coil 750 90° 750 600 1,400 3
Coil 1000 90° 1000 750 1,800 3
